12 & 24 Valve Dodge 5 Speed Single and Street Dual Disc Clutches

Getrag & NV4500 Transmissions



Single Disc

Attention all 12-1/4" NV4500 and Getrag users.

All 12v trucks will need the center bore machined out.

All flywheels must be checked, we have seen some 24v trucks that have had the 12v flywheel.



(Click to Enlarge)



1988 - 1993 12 Valve Cummins fitted with Getrag 5 Speed Transmission.

We no longer offer replacement Getrag clutches.



The 12 1/4" NV4500 clutch will fit your stock Getrag flywheel or you can upgrade to the 13" conversion kit found here. 5 speed 13" upgrade.

1994 - 2002 12 & 24 Valve Cummins fitted with NV4500 Transmission.

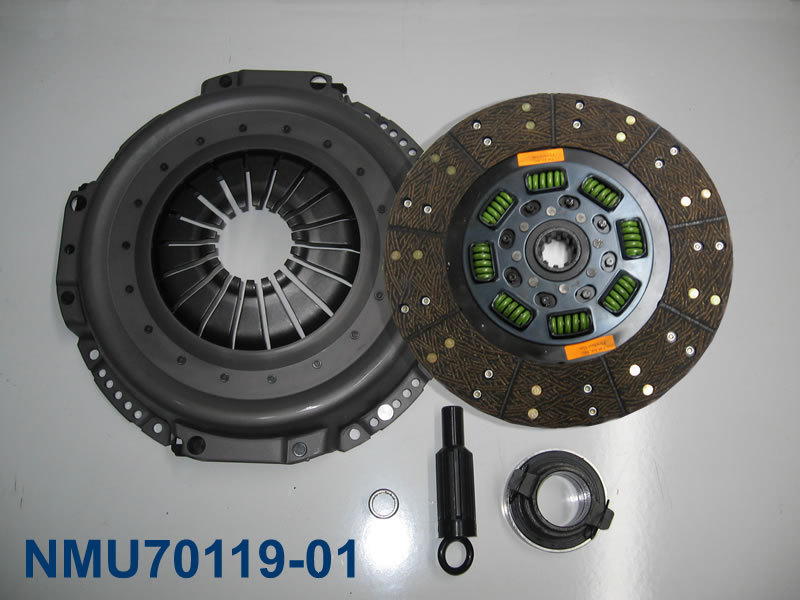

Dodge OEM Style Clutch

NMU70119
$270.81



OEM replacement
Organic Facings
Rated @ Stock HP
Kit includes: Pressure Plate, Clutch Disc, Release Bearing, Pilot Bearing and Alignment Tool.




NMU70119-04

NMU70119-04
$550.00

NOT FOR TOWING

12.25" x 1.25" Performance Replacement
Ceramic Buttons

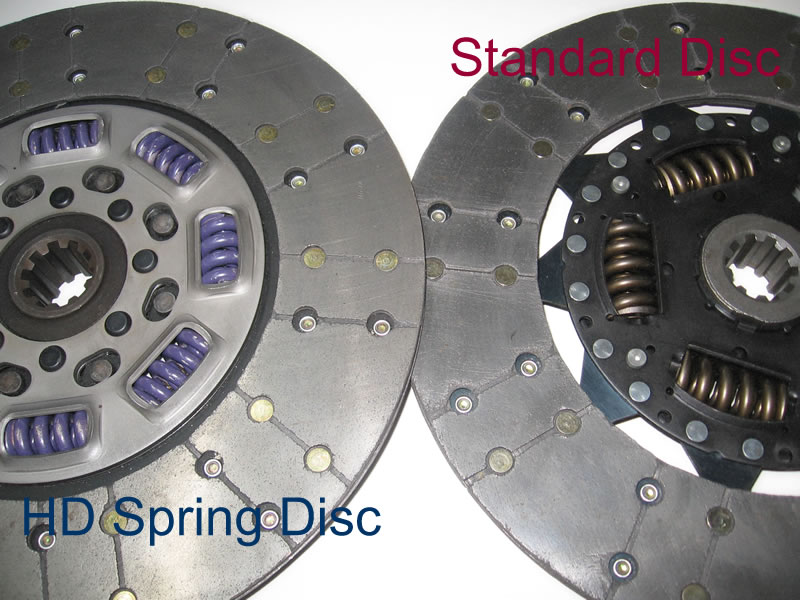

HD Spring Hub
Rated @ 550HP / 1000 ft lbs Torque
3800# Pressure Plate
Kit includes: Pressure Plate, Clutch Disc, Release Bearing, Pilot Bearing and Alignment Tool.







Ceramic / Kevlar Dodge Clutch

NMU70119-06
$700.00

This is not a Dual Disc Clutch. The picture is showing both sides of the disc.

12.25" x 1.25" Performance Replacement
Ceramic & Kevlar Buttons
HD Spring Hub
Rated @ 500HP / 950 ft lbs Torque
3800# Pressure Plate
Kit includes: Pressure Plate, Clutch Disc, Release Bearing, Pilot Bearing and Alignment Tool.



Street Dual Disc

All dual disc come standard with 1.375 hubs

Trucks with OEM 1.25 input shafts must order input shaft kit VA1.375K or VA1.375B

You can order a clutch built with 1.25 hubs, but you must tell your sales person at the time of order.

ddsn

NMU70NV45DDSN

$1010.00



Dual Disc Kit - up to 650HP
Ceramic Buttons
Nodular Iron Flywheel and Billet Floater plate
Pressure Plate Load - 3800#

Kit includes: New Nodular Sprung hub NV4500 Dual Disc Flywheel, 3800# Pressure Plate, Ceramic Clutch Discs, Release Bearing, HD Pilot Bearing, Modified Clutch Fork, Bolt Kit, starter spacer and Alignment Tool.

CLUTCH





NMU70NV45DDSN-ORG

$1010.00

Not for Competion Use

Towing Dual Disc

Not for Racing applications





Dual Disc Kit - up to 550HP
Organic Facings
Nodular Iron Flywheel and Billet Floater plate
Pressure Plate Load - 3400#
Kit includes: New Nodular Sprung hub NV4500 Dual Disc Flywheel, 3400# Pressure Plate, Organic Clutch Discs, Release Bearing, HD Pilot Bearing, Modified Clutch Fork, Bolt Kit, starter spacer and Alignment Tool.

If you have a Stock - 500HP truck and tow alot this is the only way to go. This clutch has a smooth engagement.

CLUTCH

QNV45DDSN-ORG


$1210.00

Not for Competion Use

Towing Dual Disc

Not for Racing applications

Quiet Dual Disc Kit - up to 550HP
Organic Facings
Nodular Iron Flywheel and Billet Floater plate
Pressure Plate Load - 3400#
Kit includes: New Nodular Sprung hub Dual Disc Flywheel, 3400# Pressure Plate, Organic Clutch Discs, Release Bearing, HD Pilot Bearing, Modified Clutch Fork, Bolt Kit, starter spacer and Alignment Tool.

This Quiet version will eliminate the floater plate rattle when the clutch pedal is pressed in. It will not get rid of gear rollover noise.

If you have a Stock - 500HP truck and tow alot this is the only way to go. This clutch has a smooth engagement.

QNV45DDSN
$1210.00



Quiet Dual Disc Kit - up to 650HP
Ceramic Buttons
Nodular Iron Flywheel and Billet Floater plate
Pressure Plate Load - 3800#
Kit includes: New Nodular Sprung hub Dual Disc Flywheel, 3800# Pressure Plate, Ceramic Clutch Discs, Release Bearing, HD Pilot Bearing, Modified Clutch Fork, Bolt Kit, starter spacer and Alignment Tool.

This Quiet version will eliminate the floater plate rattle when the clutch pedal is pressed in. It will not get rid of gear rollover noise.

Misc Items

Dodge Pilot Bearing

SCE1211
$7.00

Standard Pilot Bearing for NV4500 5 Speed Trucks
Fits Stock Flywheels

Dodge Release Bearing

1635-2RS
$11.00

Heavy Duty Pilot Bearing for NV4500 5 Speed Trucks with 13" Conversion Kit

Dodge Release Bearing

BRG063
$34.92

Standard Release Bearing (Throw-out Bearing)
All Models with Getrag or NV4500 Transmission

Dodge Clutch Alignment Tool

AT5465
$2.75

1.25" Alignment Tool
All Models with 1.25" input shaft

NMU70HYD-02

NMU70HYD-02
$284.51



Heavy Duty Hydraulic Master / Slave Replacement for 2nd Generation 1998 - 2002 Trucks with bolt in bracket on firewall. Includes adjustable rod.

NMU70HYD-01
$233.53

Heavy Duty Hydraulic Master / Slave Replacement for 2nd Generation 1994 - 1997 Trucks without bolt in bracket on firewall.

Starter Spacer Kit

V2151
$63.48

Starter Spacer Kit
Allows the use of NV5600 6 Speed Flywheel in a 5 speed truck

Used with our NV4500 Dual Disc kits

INPUT VA1.375K
$275.00

1-3/8" Input Shaft Upgrade

Complete upgrade kit for NV4500 with 1-1/4" Input Shafts. Fully assembled and ready to install.







VA1.375B
$650.00

1-3/8" Made in USA 4340 Billet Input Shaft Upgrade

Complete upgrade kit for NV4500 with 1-1/4" Input Shafts. Fully assembled and ready to install.

Dual Drilled Flywheel V3433
$230.96
New 5 Speed Flywheel with HD Pilot Bearing
Direct Factory Replacement (No Starter Spacer Required)
These are dual drilled to accept 12.25" or 13.00" pressure plates.
Used in our 13" 5 Speed Conversions
