15-1/2" Cast Cover
Angle Spring and Easy Pedal Clutches

New (NMU)

Remanufactured (RMU)

Call for details 940-468-4542

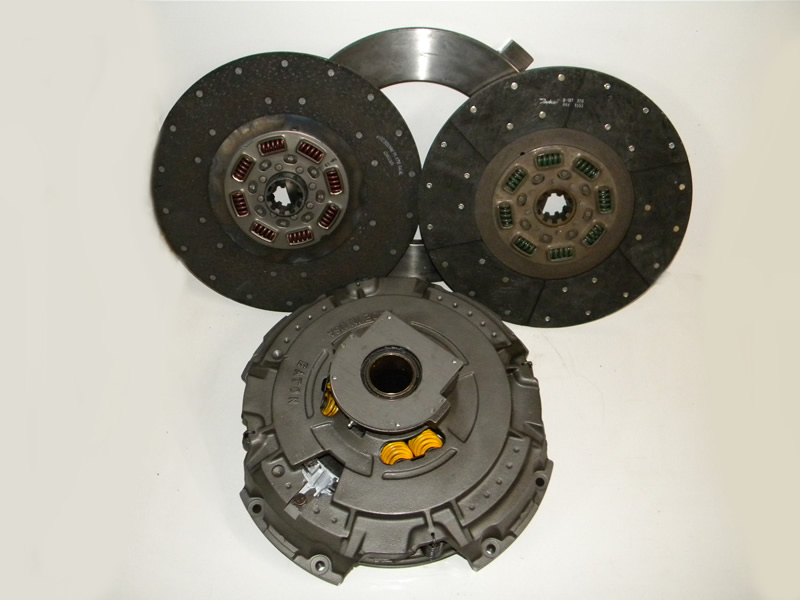

15-1/2" Cast Angle Spring

597-6A5

NMU127597-6A5

RMU127597-6A5

15 x 2 DOF-CO-FT 8 Spring Angle Spring
4000# Load
1400 ft lbs Torque
7.00" Flywheel Bore
107091-80, NMU597-090-4, RCMU597DOX

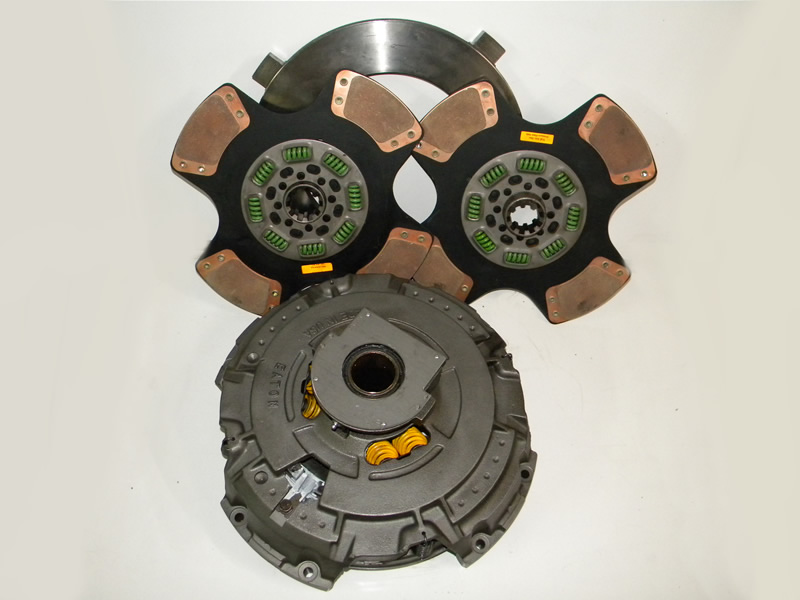

597-6G5

NMU127597-6G5

RMU127597-6G5

15 x 2 DCF-CO-FT 8 Spring Angle Spring
3600# Load
1400 ft lbs Torque
7.00" Flywheel Bore
107091-81, NMU597-094-4, RCMU597DCX

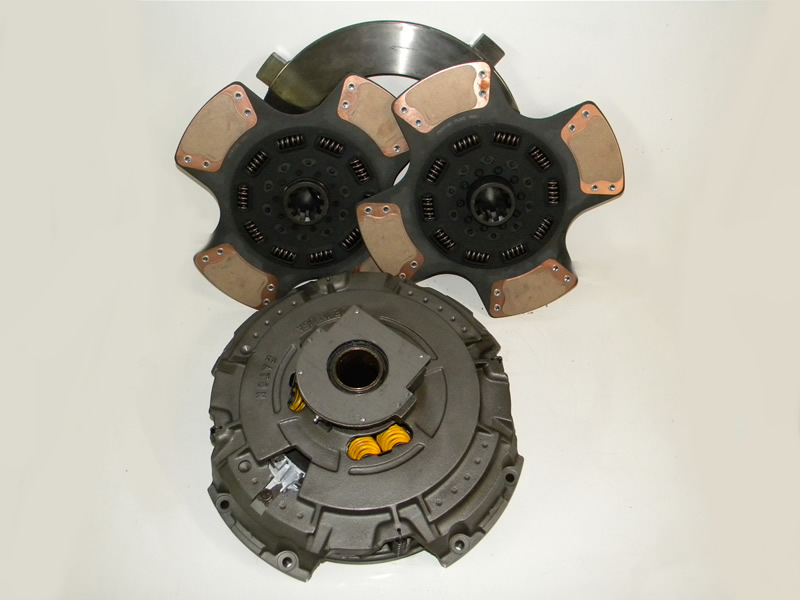

597-5G5

NMU127597-5G5

RMU127597-5G5

15 X 2 DCF-CO-FT 10 Spring Angle Spring
3600# Load
1650 ft lbs Torque
8.50" Flywheel Bore
107091-74, NMU597-064-4, RCMU018DCX

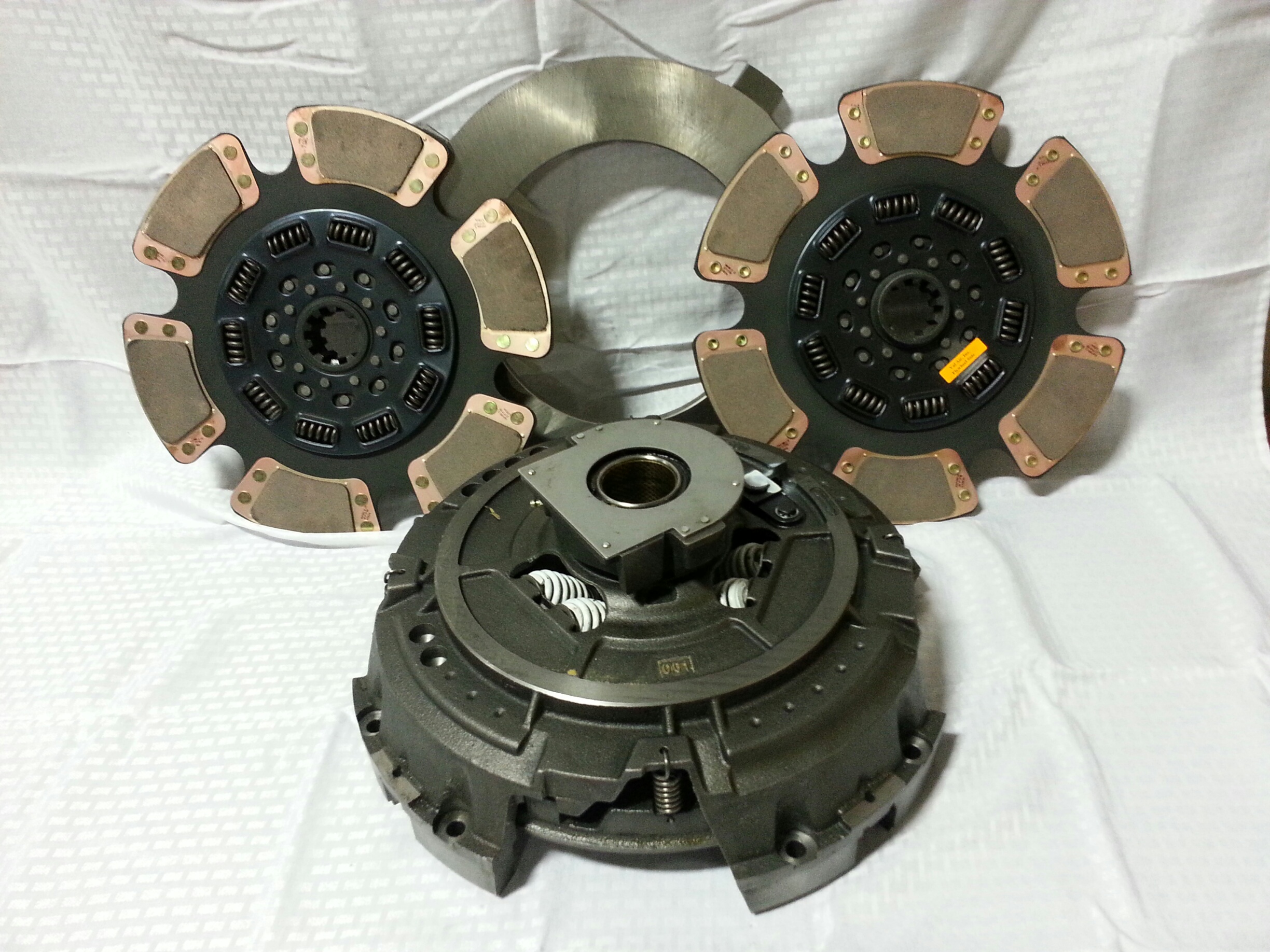

NMU127597-5W5

RMU127597-5W5

15 X 2 DCF-CO-FT 10 Spring Angle Spring
4000# Load
2050 ft lbs Torque
8.50" Flywheel Bore
NMU597-067-6, RCMU018HTX

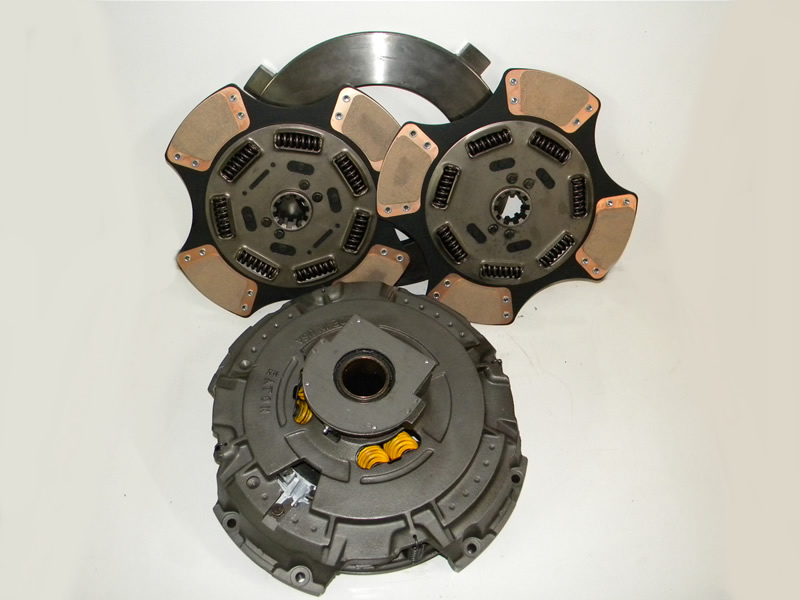

597-11G5

NMU127597-11G5

RMU127597-11G5

15 x 2 DCF-CO-FT 7 Spring Angle Spring
3600# Load
1700 ft lbs Torque
10.00" Flywheel Bore
NMU698-044-4, RCMU700CX

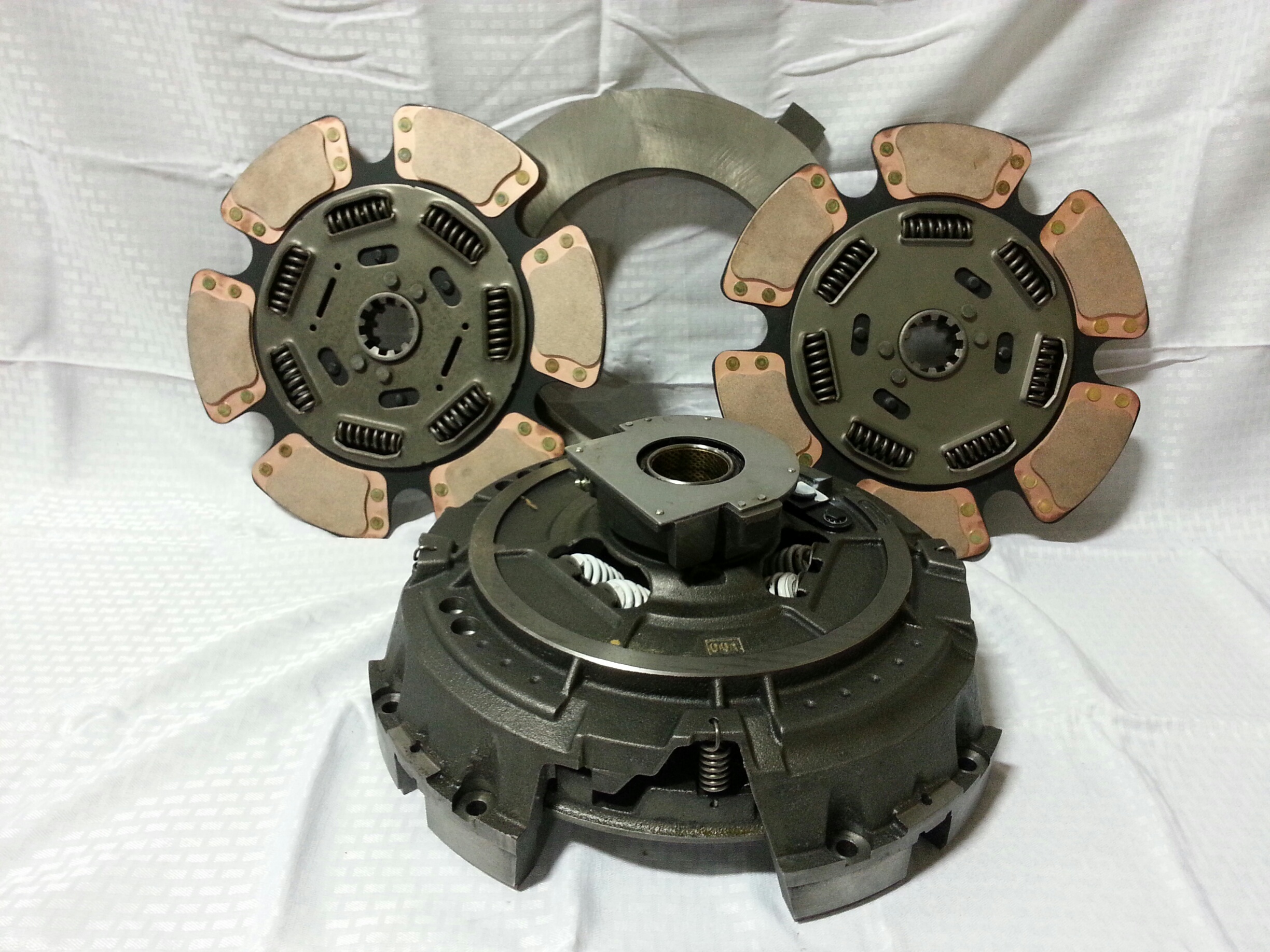

NMU127597-11W5

RMU127597-11W5

15 X 2 DCF-CO-FT 7 Spring Angle Spring
4000# Load
2050 ft lbs Torque
10.00" Flywheel Bore
RCMU700HTX

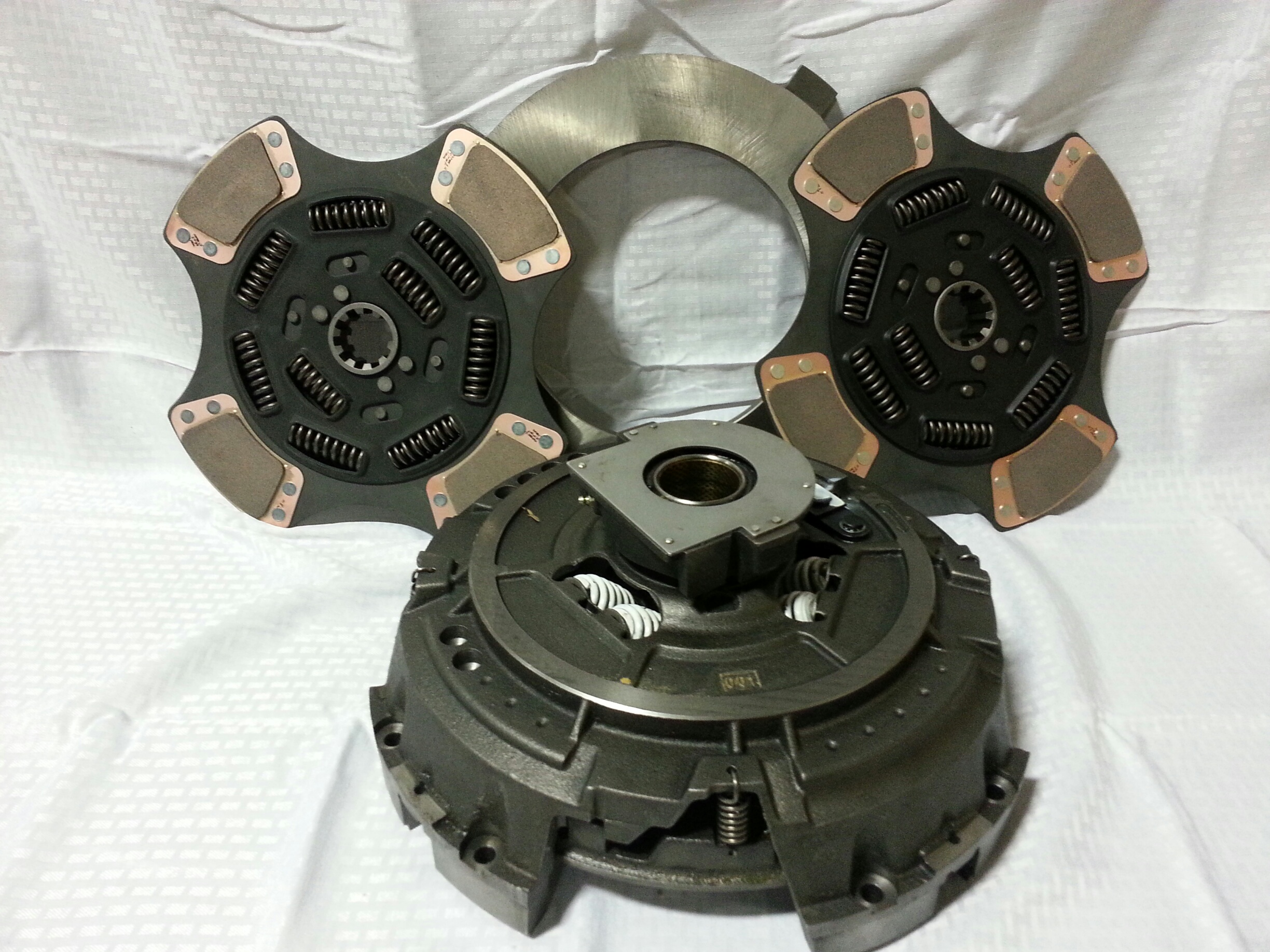

NMU127597-9G5

RMU127597-9G5

15 X 2 DCF-CO 9 Spring Angle Spring
3600# Load
1650 ft lbs Torque
10.00" Flywheel Bore
107935-51, NMU698-044-4-M, RCMU698CX

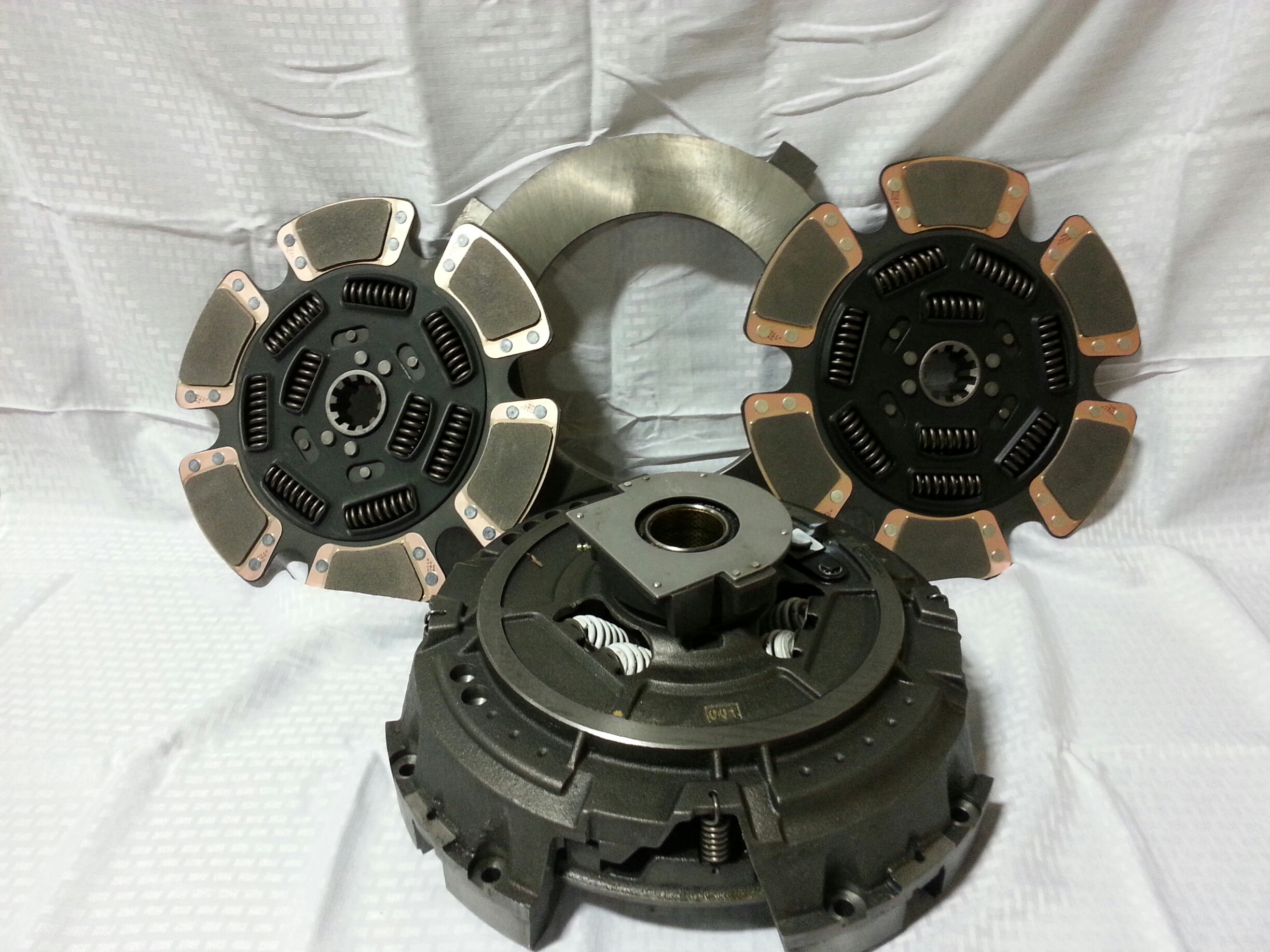

NMU127597-9W5

RMU127597-9W5

15 X 2 DCF-CO 9 Spring Angle Spring
4000# Load
2050 ft lbs Torque
10.00" Flywheel Bore

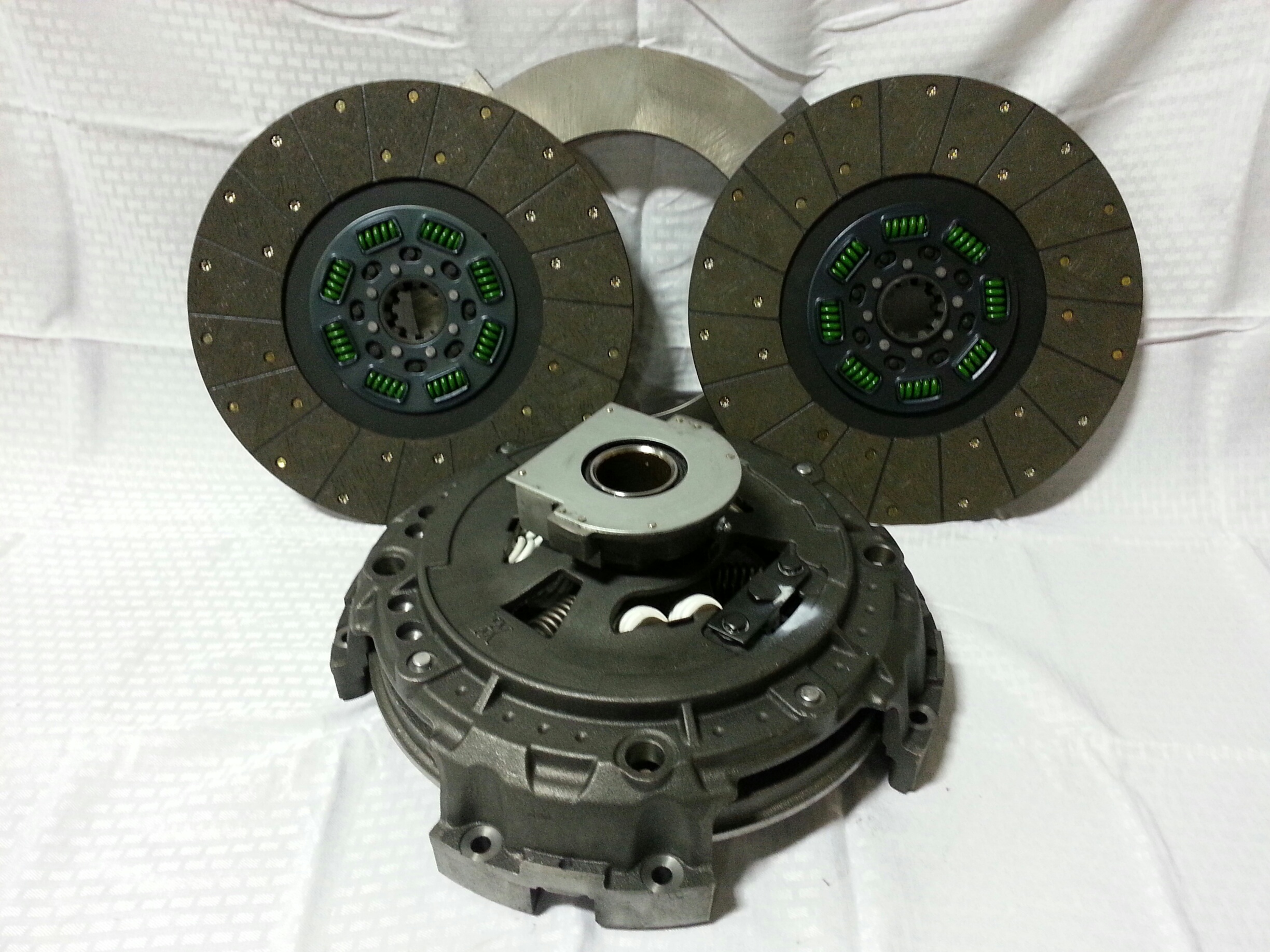

15-1/2" Cast Easy Pedal

NMU108391-6A5

RMU108391-6A5

15 X 2 DOF-CO-FT 8 Spring Easy-Pedal
3600# Load
1400 ft lbs Torque
7.00" Flywheel Bore
108391-80, NMU705-090-4, RCMU597EZDOX

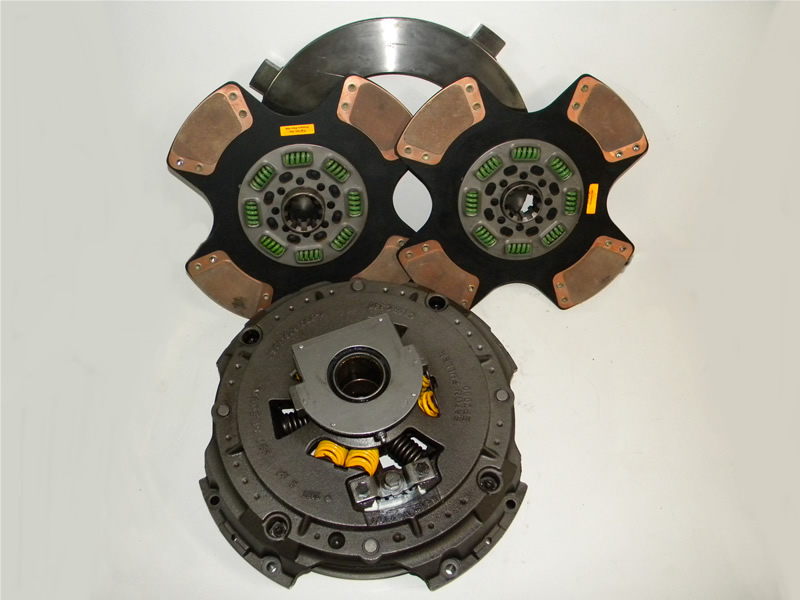

391-6G5

NMU108391-6G5

RMU108391-6G5

15 x 2 DCF-CO-FT 8 Spring Easy-Pedal
4000# Load
1400 ft lbs Torque
7.00" Flywheel Bore

108391-81, NMU705-094-4, RCMU597EZDCX

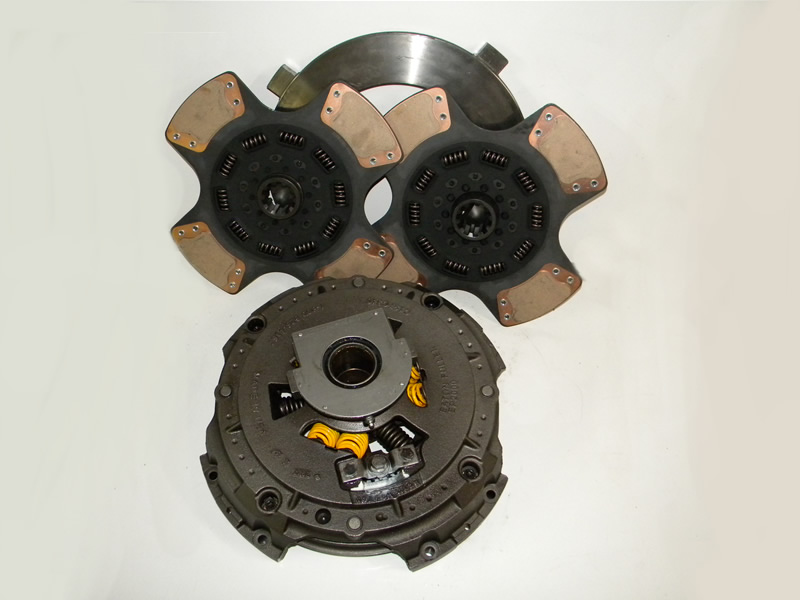

391-5G5

NMU108391-5G5

RMU108391-5G5

15 X 2 DCF-CO-FT 10 Spring Easy-Pedal
3600# Load
1650 ft lbs Torque
8.50" Flywheel Bore

108391-74, NMU705-064-4, RCMU018EZDCX

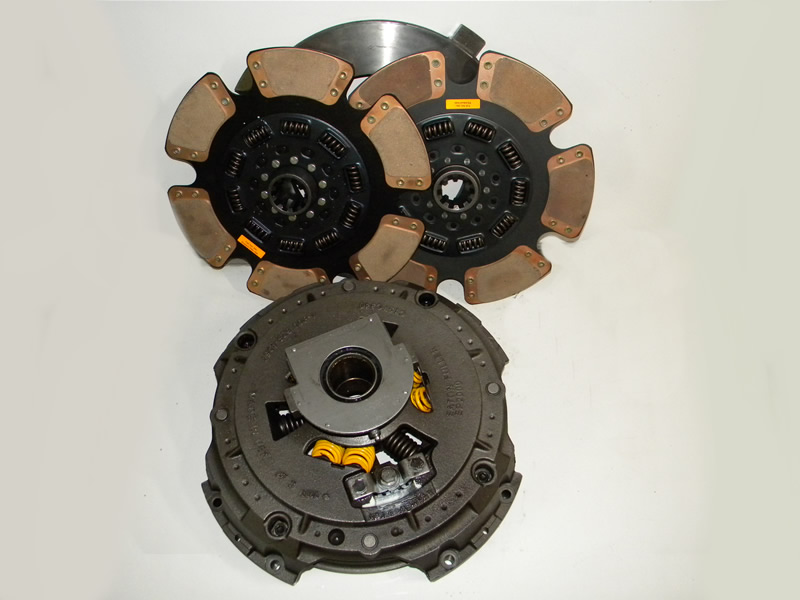

391-5W5

NMU108391-5W5

RMU108391-5W5

15 X 2 DCF-CO-FT 10 Spring Easy-Pedal
4000# Load
2050 ft lbs Torque
8.50" Flywheel Bore

NMU705-067-6, RCMU018EZHTX

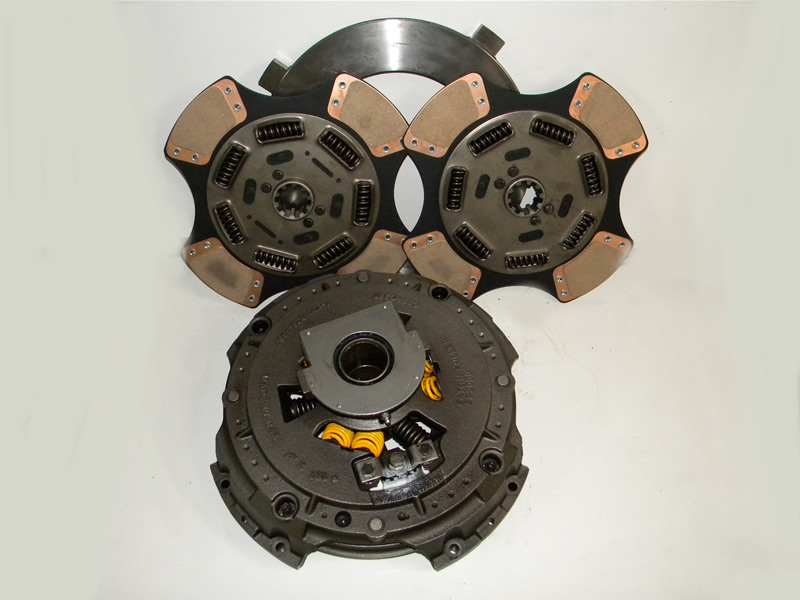

391-11G5

NMU108391-11G5

RMU108391-11G5

15 X 2 DCF-CO-FT 7 Spring Easy-Pedal
3600# Load
1700 ft lbs Torque
10.00" Flywheel Bore

108925-82, NMU455-044-4, RCMU700EZCX, 108935-82,
108925-14-34, 109701-14, 109700-82

925-11G5

NMU108925-11G5

RMU108925-11G5

15 X 2 DCF-CO-FT 7 Spring Easy-Pedal (Dual Grease Zerk)
4000# Load
1750 ft lbs Torque
10.00" Flywheel Bore

108925-82

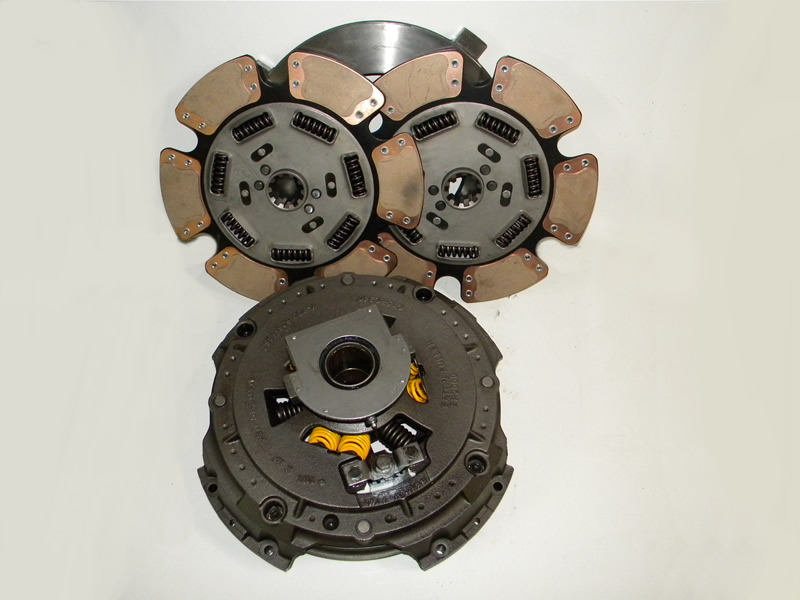

925-11W5

NMU108925-11W5

RMU108925-11W5

15 X 2 DCF-CO-FT 7 Spring Easy-Pedal
4000# Load
2050 ft lbs Torque
10.00" Flywheel Bore

108925-85-30, 109701-82-30, 108925-24, 109701-24,
108925-20, 108925-25, 109705-20

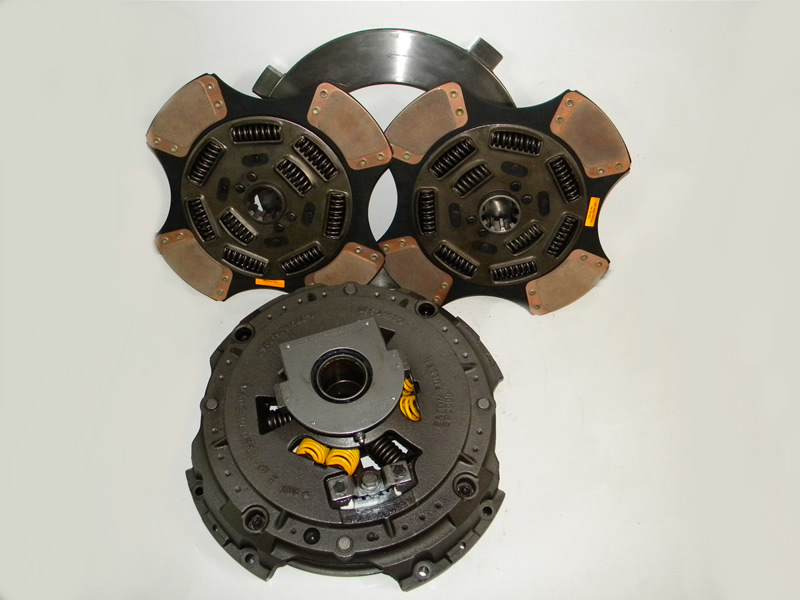

935-9G5

NMU108935-9G5

RMU108935-9G5

15 X 2 DCF-CO 9 Spring Easy-Pedal
4000# Load
1750 ft lbs Torque
10.00" Flywheel Bore

108935-51, 108935-61, NMU455-057-4-M, RCMU698EZCX

NMU108935-9W5

RMU108935-9W5

15 X 2 DCF-CO 9 Spring Easy-Pedal
4000# Load
2050 ft lbs Torque
10.00" Flywheel Bore

NMU455-057-4-M, RCMU698EZHTX
